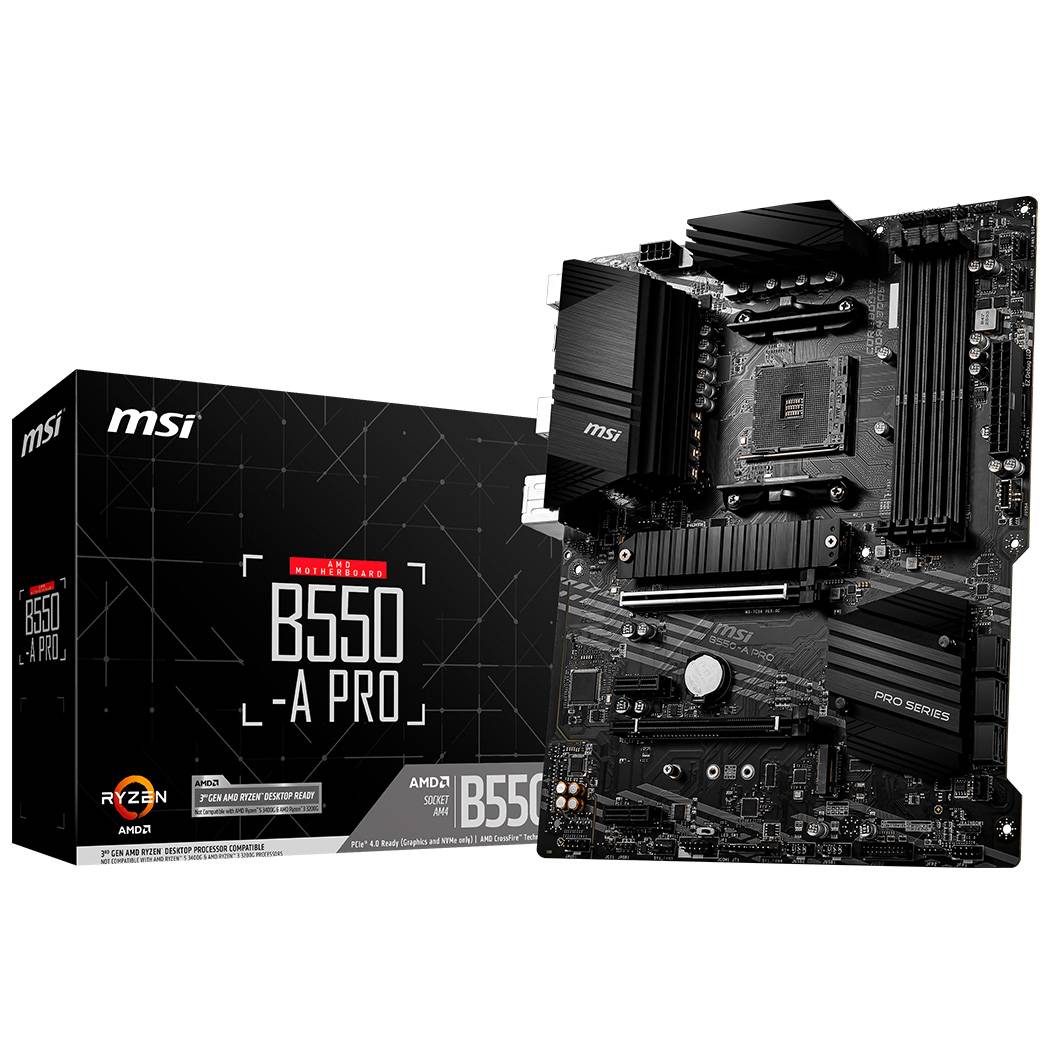

Motherboard ATX MSI B550-A PRO

Motherboard ATX MSI B550-A PRO

Processador:

Suporta AM4 socket 3rd Gen AMD Ryzen™ e o futuro AMD Ryzen™ com update BIOS
Chipset:

AMD B550
Memória RAM:

4 x DIMM socket suporta até 128 GB
Suporta DDR4 1866 2133 2400 2667 2800 2933 3000 3066 3200 MHz by JEDEC
Suporta DDR4 2667 2800 2933 3000 3066 3200 3466 3600 3733 3866 4000 4133 4266 4400+ MHz by A-XMP OC MODE
Arquitetura de memória Dual Channel
Suporta non-ECC UDIMM memory
Suporta ECC UDIMM memory (non-ECC mode)
Suporta un-buffered memory
Slots de Expansão:

1 x PCIe 4.0 3.0 x16 slot (PCI_E1)
1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2 x PCIe 3.0 x1 slots
Armazenamento:

6 x SATA 6Gb s ports
2 x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0 3.0 x4
Supports SATA 6Gb s
Supports 2242 2260 2280 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports PCIe 3.0x4 Supports 2242 2260 2280 storage devices
LAN:

1x Realtek® 8111H Gigabit LAN controller
Áudio:

Realtek® ALC892 Codec
7.1-Channel High Definition Audio
Portas USB:

AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Conectores I O:

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
Portas Painel Traseiro:

Keyboard Mouse
DisplayPort
LAN
HD Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A+C
Dimensões:

Formato ATX , 30.5 cm x 24.4 cm
EAN; 4719072733667
