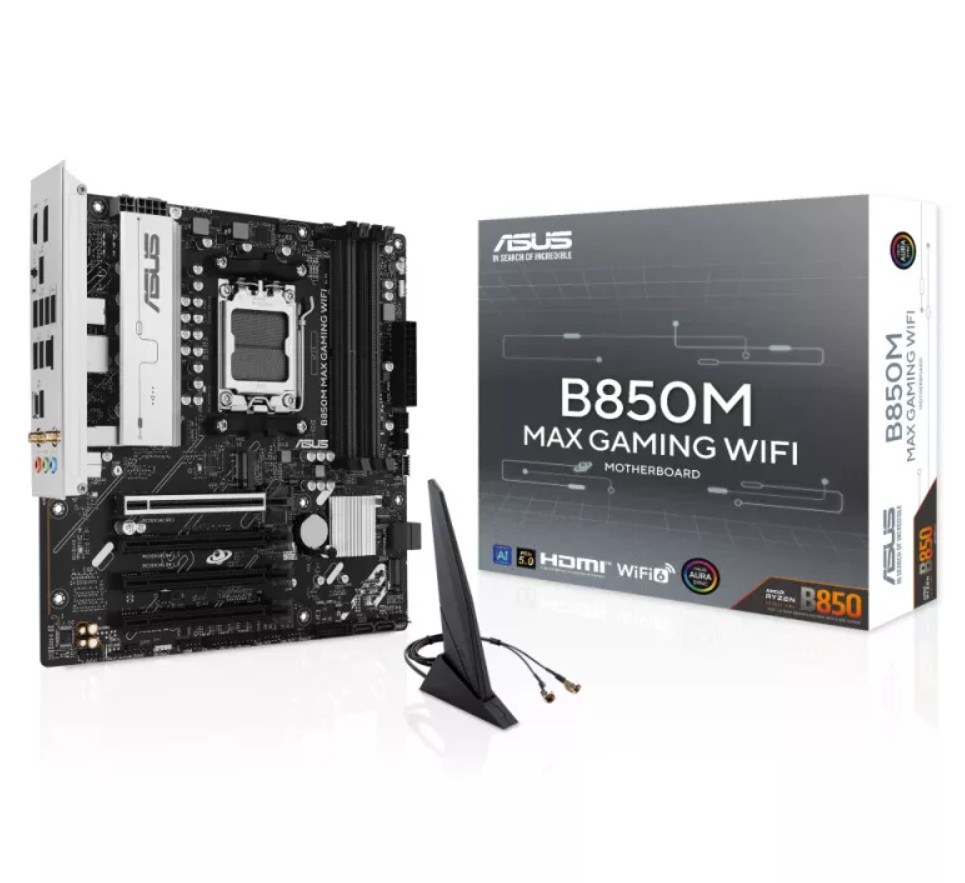

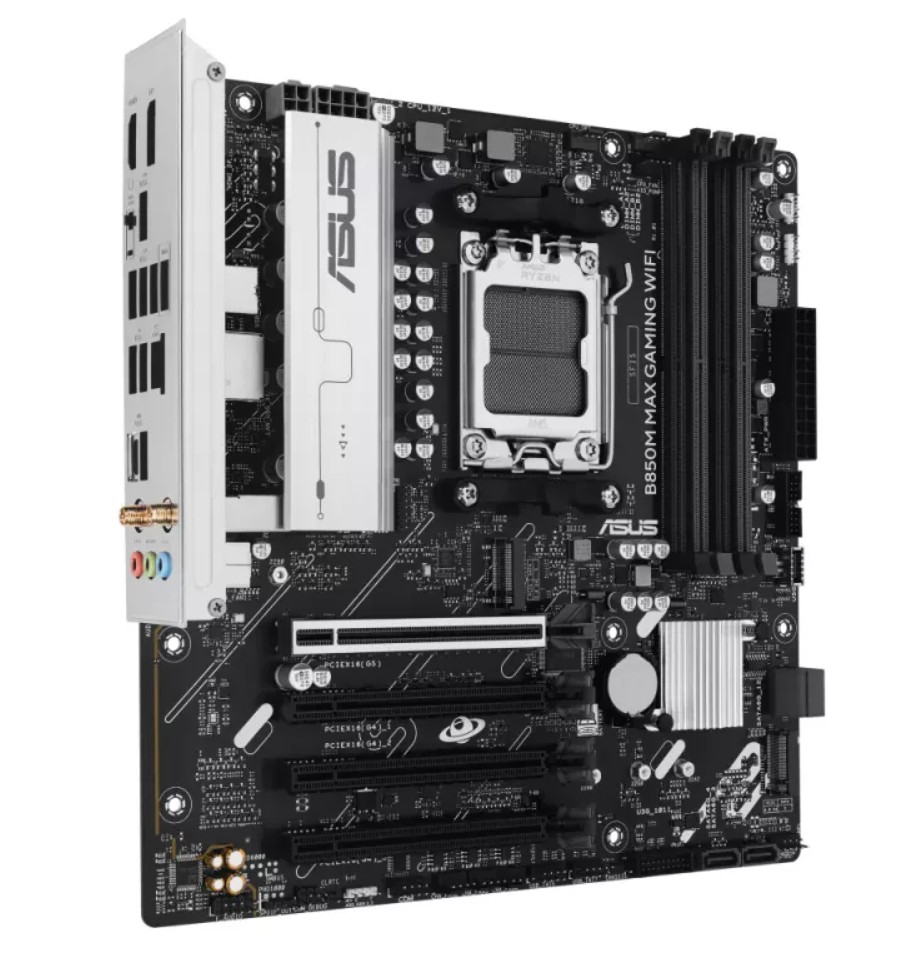

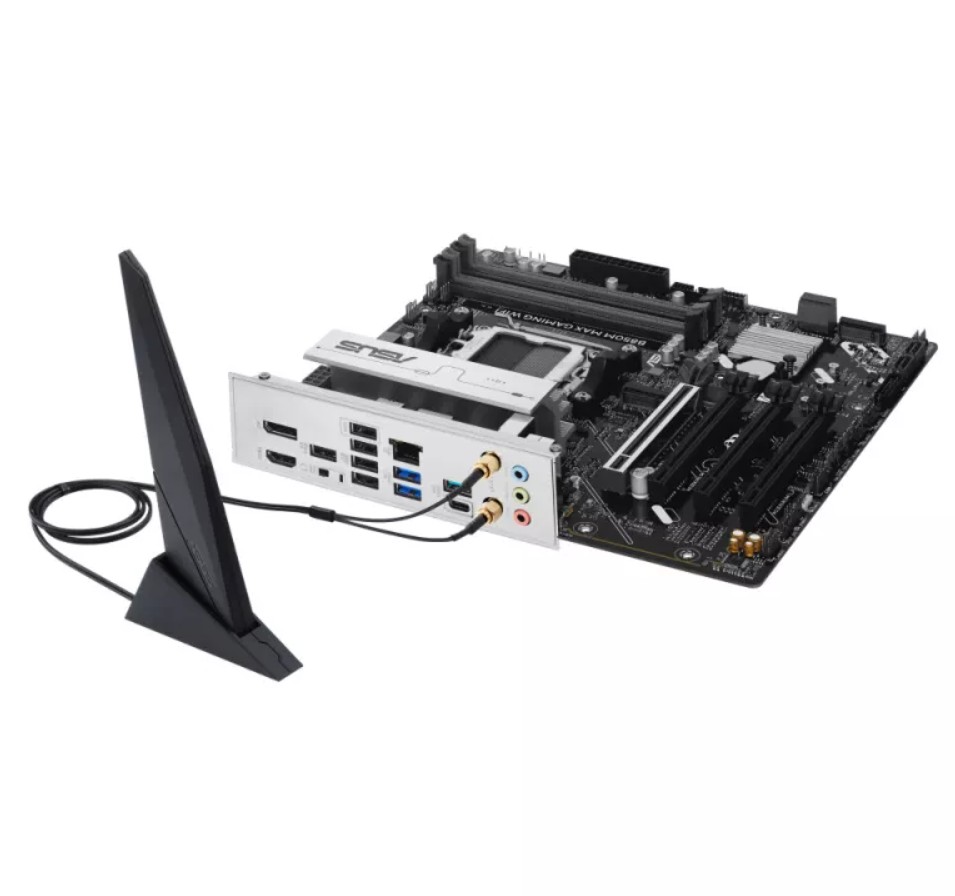

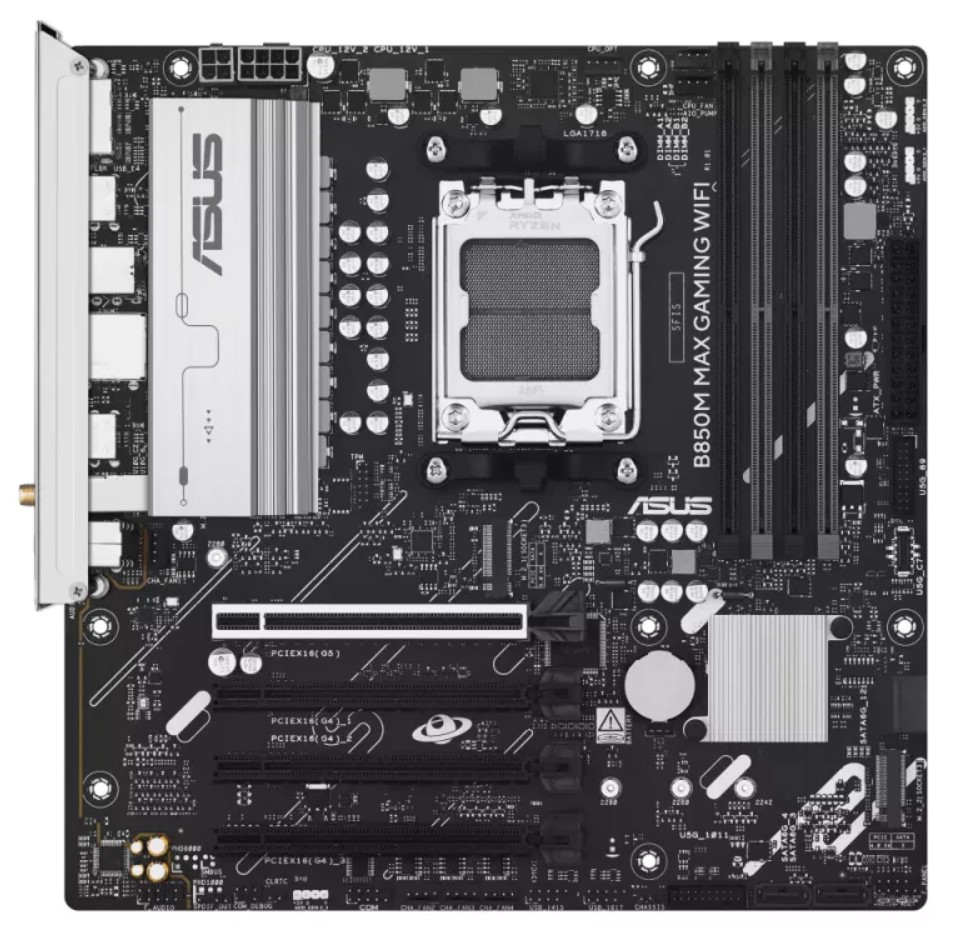

Motherboard Asus SktAM5 - MAX GAMING B850M WIFI 90MB1LL0-M0EAY0

Procesador

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

AMD B850

Memoria

4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Slots

1 x PCIe 5.0 x16 slot (supports x16 mode)

3 x PCIe 4.0 x16 slot (support x1 mode)

1 x PCIe 4.0 x16 slot (supports x8 x4 mode)**

3 x PCIe 4.0 x16 slot (support x1 mode)

Gráficos

1 x DisplayPort**

1 x HDMI™ port***

Armazenamento

Supports 3 x M.2 slots and 4 x SATA 6Gb s ports

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242 2260 2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242 2260 2280 (supports PCIe 4.0 x2 mode)

4 x SATA 6Gb s ports

USB

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

2 x USB 5Gbps ports (2 x Type-A)

5 x USB 2.0 ports (5 x Type-A)

1 x USB 5Gbps connector (supports USB Type-C®)

2 x USB 5Gbps header support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit 192 kHz playback

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

Conectividade e redes

1 x Realtek 1Gb Ethernet

ASUS LANGuard

Wi-Fi 6

1x1 Wi-Fi 6 (802.11ax)

Supports 2.4 5GHz frequency band

Bluetooth® v5.4*

Conectores Internos

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connectors

1 x 4-pin +12V CPU Power connectors

3 x M.2 slots (Key M)

4 x SATA 6Gb s ports

1 x USB 5Gbps connector (supports USB Type-C® )

2 x USB 5Gbps header support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

3 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin System Panel header

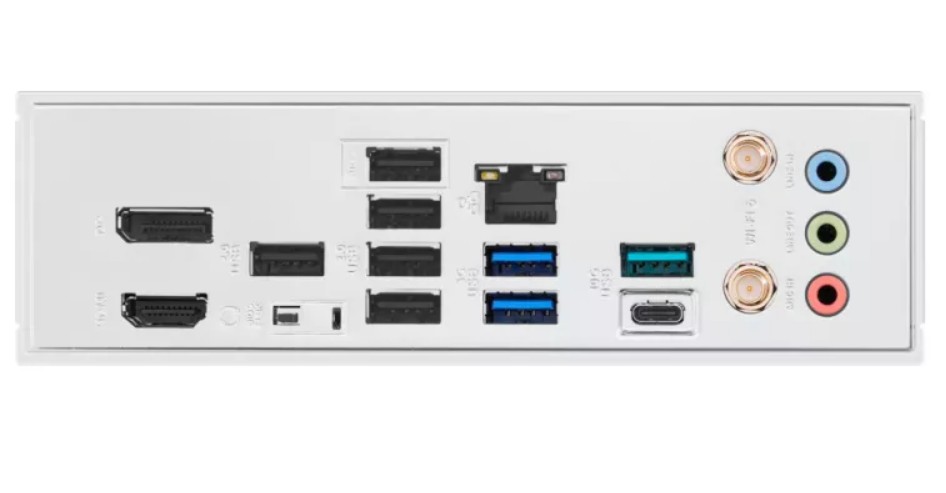

Conectores Traseiros

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)

2 x USB 5Gbps ports (2 x Type-A)

5 x USB 2.0 ports (5 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

Formato

mATX (24.4 cm x 24.4 cm)
