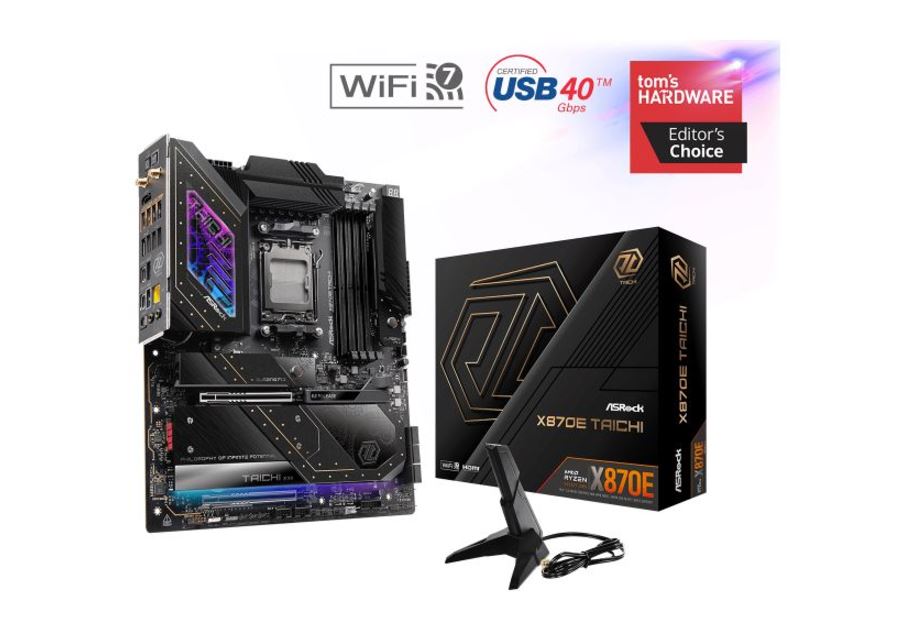

Motherboard ASRock X870E Taichi AM5

Motherboard ASRock X870E Taichi AM5

Modelo X870E Taichi
CPU Suportado AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series
Chipset AMD X870E
Memória Dual Channel DDR5
4 x DIMM, Máximo 256GB, DDR5, un-buffered memória até 8200+(OC)
Arquitetura de Memória Dual Channel
Suporta Extreme Memory Profile (XMP)
Slots de Expansão CPU:
2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8 x8 modes
Chipset
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi BT PCIe WiFi module
Armazenamento CPU:
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb s) mode
Chipset
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb s) mode
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb s) mode
6 x SATA3 6.0 Gb s Connectors
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
LAN Realtek RTL8126
Audio 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
WIMA Audio Capacitors (For Rear Outputs)
ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
Individual PCB Layers for R L Audio Channel
Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
Nahimic Audio
Portas USB 2 x USB4 Type-C (Rear)
2 x USB 3.2 Gen2 Type-A (Rear) Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front)
3 x USB 3.2 Gen2 Type-A (Rear)
7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Portas Traseiras 2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb s)
5 x USB 3.2 Gen2 Type-A Ports (10 Gb s) (USB32_12 are Lightning Gaming Ports.)
3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
Portas Internas 3 x Thermistor Cable Headers
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb s)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
Form Factor E-ATX
EAN; 4710483947421
