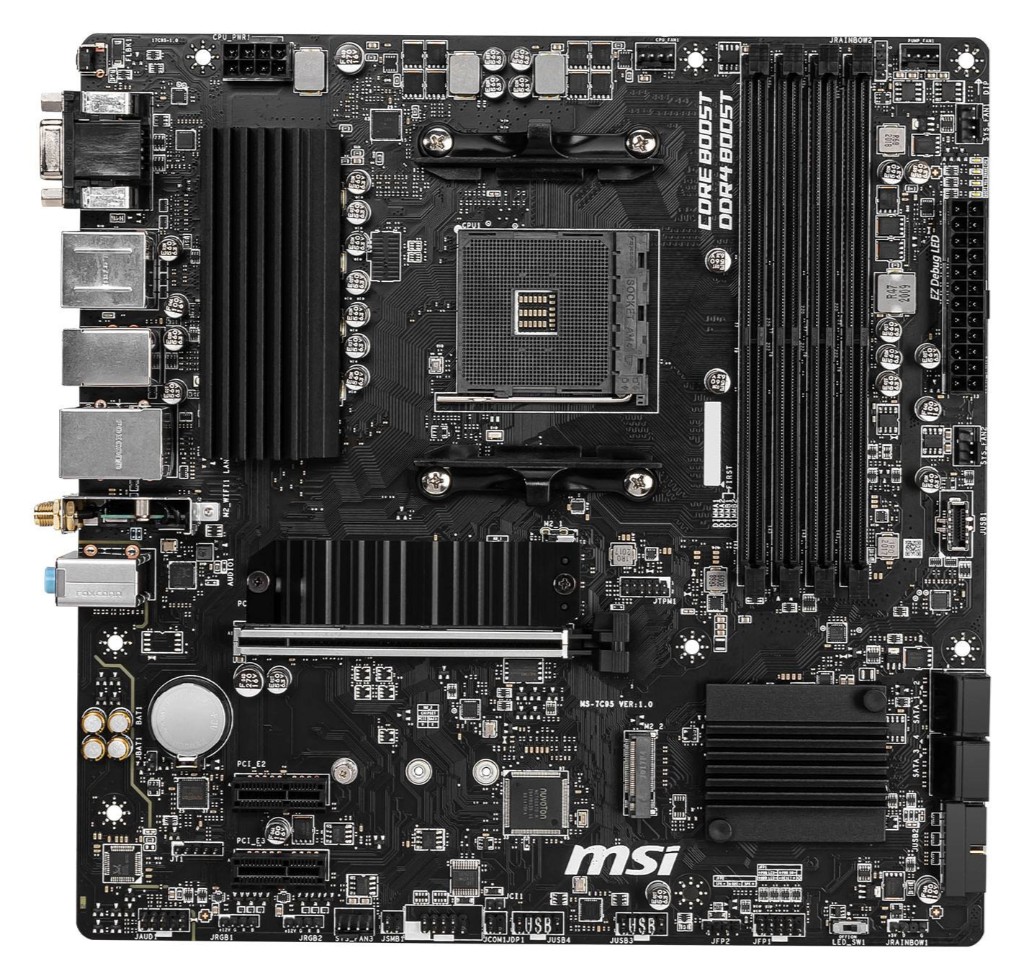

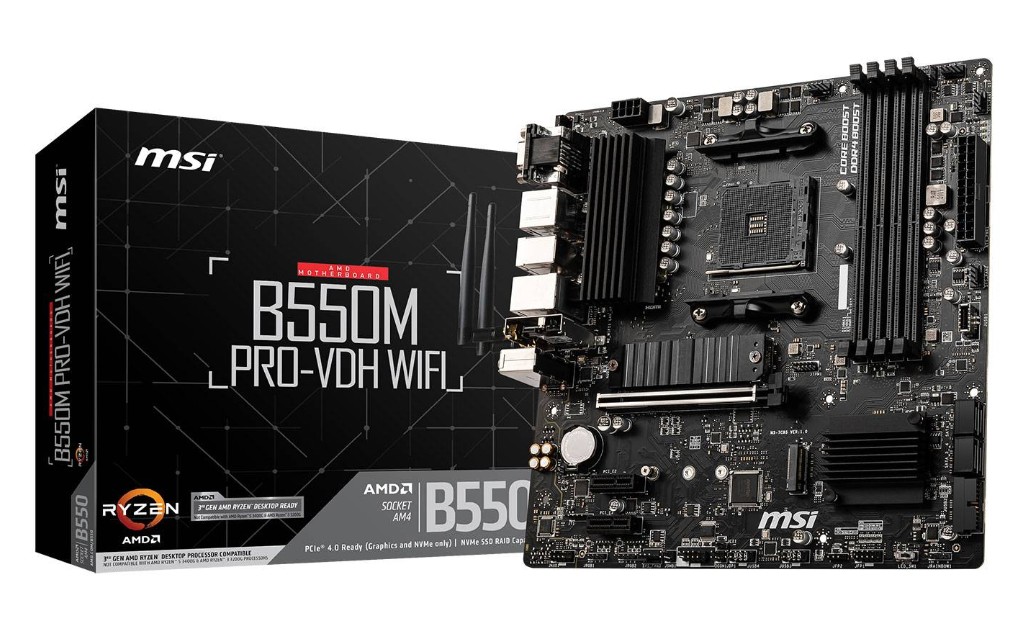

Motherboard Micro-ATX MSI B550M Pro-VDH WiFi SktAM4

Processador: Suporta processadores AM4 socket 3rd Gen AMD Ryzen™ e futuro AMD Ryzen™
Chipset: Intel® B550
Memória RAM:
4x DDR4 memory slots, support up to 128GB
Suporta DDR4 1866 2133 2400 2667 2800 2933 3000 3066 3200 MHz by JEDEC
Suporta DDR4 2667 2800 2933 3000 3066 3200 3466 3600 3733 3866 4000 4133 4266 4400+ MHz by A-XMP OC MODE
Suporta arquitetura Dual-Channel
Suporta memória non-ECC UDIMM
Suporta memória ECC UDIMM
Suporta memória un-buffered
Slots de Expansão:
1 x PCIe 4.0 3.0 x16 slot (PCI_E1) 1
2 x PCIe 3.0 x1 slots
Áudio: Realtek® ALC892 Codec
LAN: 1x Realtek® 8111HN Gigabit LAN
Armazenamento:
AMD B550 Chipset
4x SATA 6Gb s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Suporta PCIe 4.0 3.0 x4 1
Suporta SATA 6Gb s
Suporta 2242 2260 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Suporta PCIe 3.0x4
Suporta 2242 2260 2280 storage devices
Comunicações Wireless:
Intel® Wireless-AC 3168
Bluetooth 4.2
Portas USB:
AMD B550 Chipset
3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Conectores Internos
1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
4 x SATA 6Gb s
2 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps Type-C port
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan
1 x 4-pin water-pump fan
3 x 4-pin system fan
1 x Front panel audio
2 x System panel
1 x Serial port
1 x Chassis Intrusion
2 x 4-pin RGB LED
2 x 3-pin RAINBOW LED
1 xTPM module connector
1 x Clear CMOS jumper

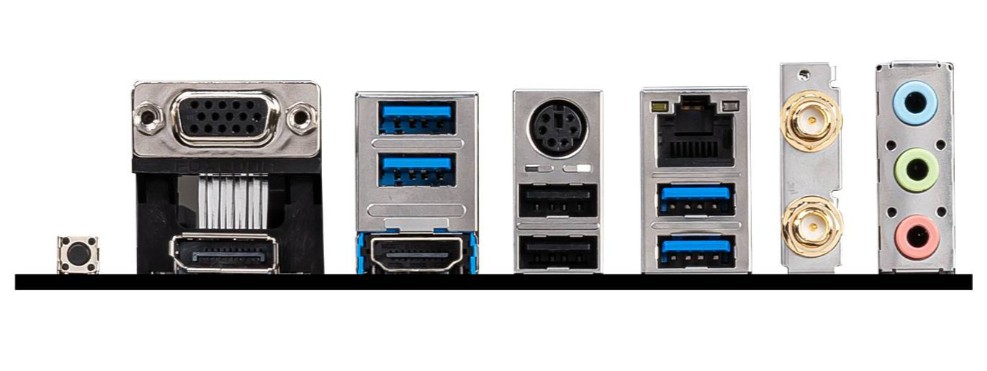

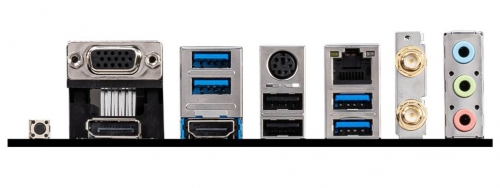

Portas I O Painel Traseiro:
VGA
USB 3.2 Gen 1 5Gbps Type-A
Teclado Rato
LAN
Flash BIOS Button
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi Antenna connectors
3 x Conectores Áudio
Dimensões: Formato Micro-ATX, 24.4 cm x 24.4 cm
