Motherboard Micro-ATX Asus TUF Gaming B550M-PLUS (Wi-Fi) II - 90MB19Y0-M0EAY0

Motherboard Micro-ATX Asus TUF Gaming B550M-PLUS (Wi-Fi) II - 90MB19Y0-M0EAY0

Especificações:
Processador: AMD Ryzen™ 5000 Series 5000 G-Series 4000 G-Series 3000 Series
Chipset: AMD B550
Memória RAM:
4 x DIMM, Max. 128GB, DDR4 4866(O.C) a 2133 MHz Un-buffered
Arquitetura de Memória Dual Channel
Memória ECC (modo ECC mode) suporta vários CPU.
Gráficos:
1 x DisplayPort 1.2
1 x HDMI 2.1(4K@60HZ)
Slots de expansão:
Processadores 5ª 3ª Ger. AMD Ryzen™
1 x PCIe 4.0 x16 (x16 mode)
Processadores 5ª 4ª Ger. AMD Ryzen™
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1
Armazenamento:
2 x M.2 slots e 4 x SATA 6Gb s
5ª 3ª Ger. AMD Ryzen™:
1 x M.2 Socket 3, with M Key, Type 2242 2260 2280(PCIE 4.0 x4 and SATA modes) storage devices support
5ª 4ª Ger. AMD Ryzen™:
M.2_1 slot (Key M), type 2242 2260 2280 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset :
M.2_2 slot (Key M), type 2242 2260 2280 22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb s
Suporta Raid 0, 1, 10
LAN: 2.5Gbps TUF LANGuard
Comunicações Wireless:
2x2 Wi-Fi 6 (802.11 a b g n ac ax) support 1024QAM OFDMA MU-MIMO
Bluetooth 5.2
Áudio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Portas USB:
Traseiras ( Total 8 )
2 x USB 3.2 Gen 2 port(s) (1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Frontais ( Total 6 )
1 x USB 3.2 Gen 1 port(s) (2 x Type-A)
2 x USB 2.0 port(s) (4 x Type-A)

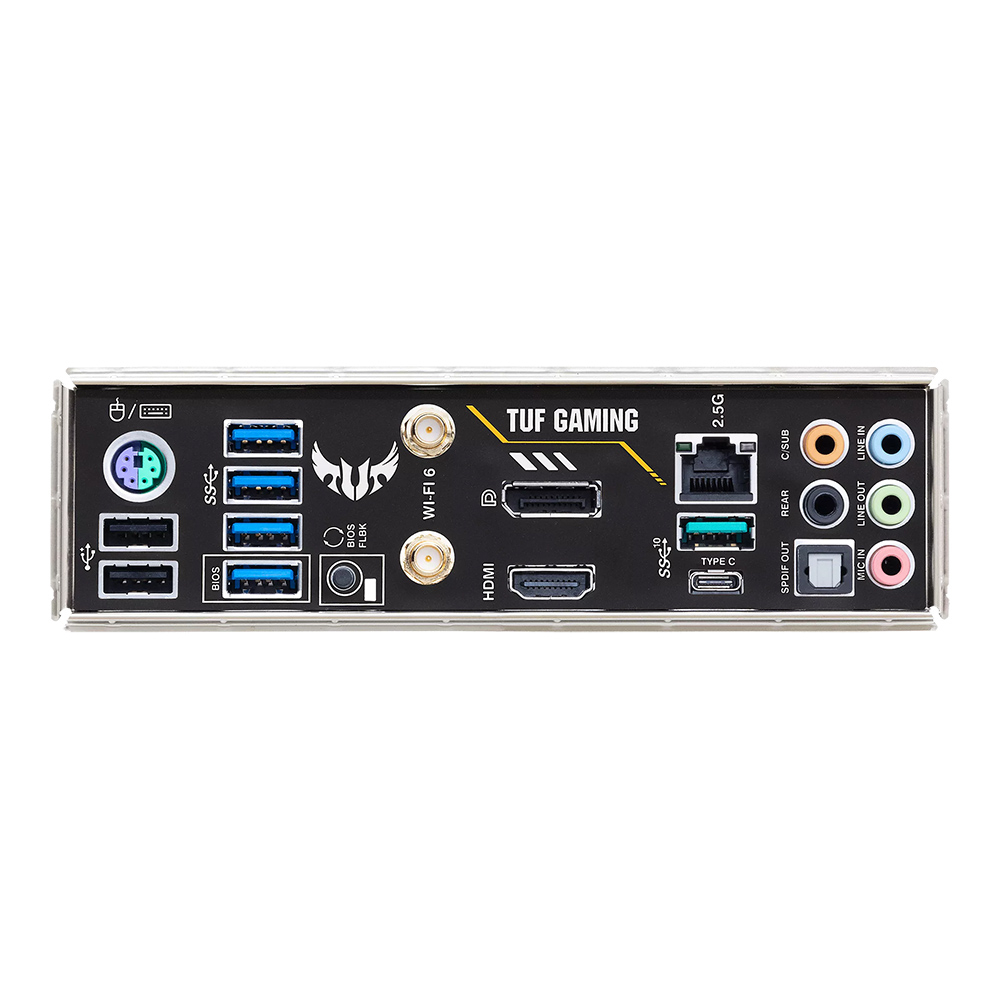

Portas I O Painel Traseiro:
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A, one port can be switched to USB BIOS FlashBack™)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S PDIF out port
1 x BIOS FlashBack™ button
1 x PS 2 Keyboard Mouse combo port
Dimensões: mATX, 24.4 cm x 24.4 cm
EAN; 4711081305705
