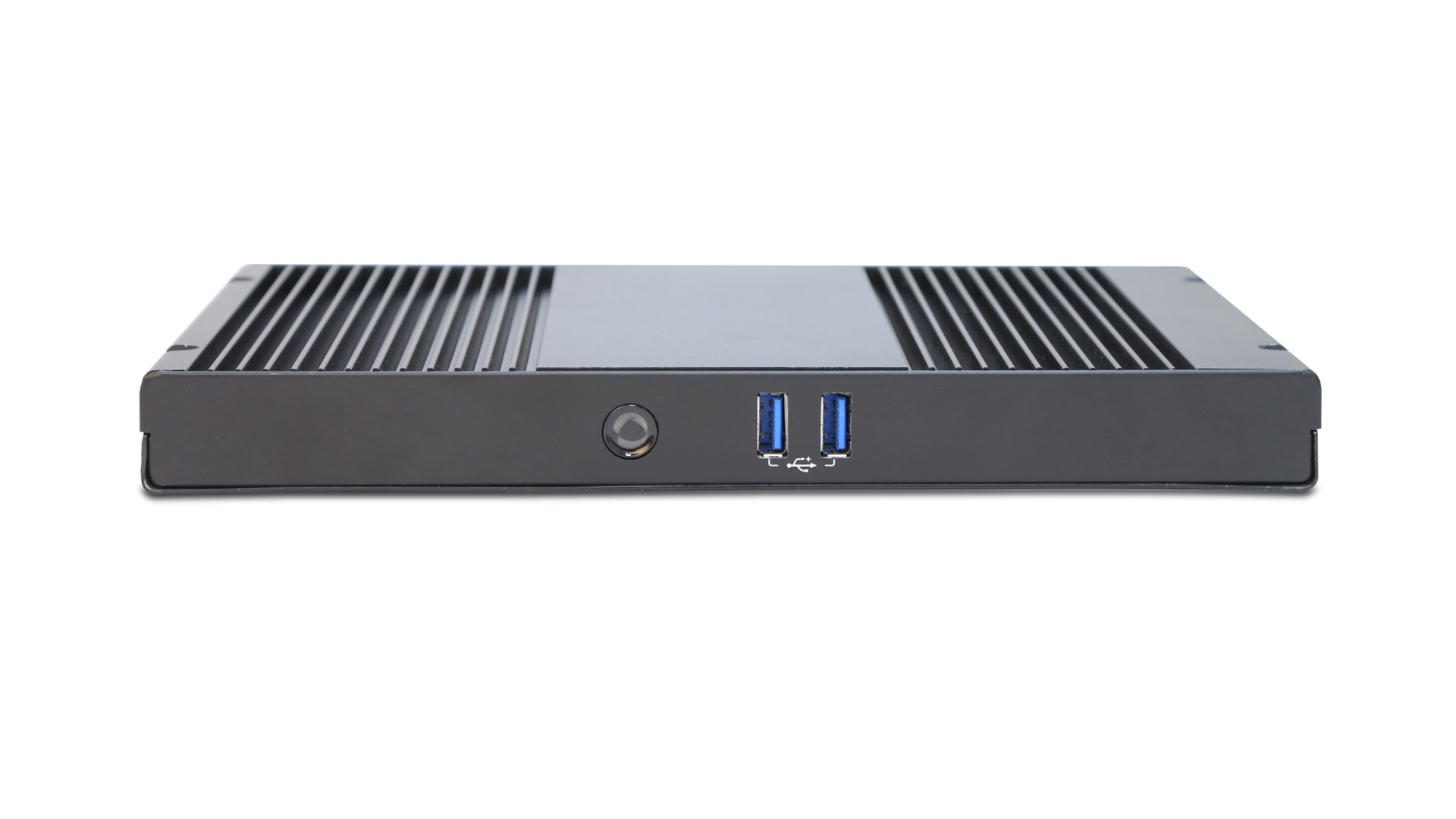

DEX5550 I5-7260U 256GB SSD 16G WIN

Dimension WxHxD 240 x 25 x 158 mm
Volume 0.95 liters
Weight 1.4 kgs 3.09 lbs
CPU 7th Generation Intel® Core™
Chipset --
AiCU Supported
Memory DDR4 SO-DIMM 2133 x2, Max. 32GB
Graphics Intel HD Graphics 610 620 640
Expansion M.2 slot x 1, 2242(key B for SSD)
M.2 slot x 1, 2242(key B for AiCU SSD WLAN)
M.2 slot x 1, 2230(key E for wifi),
Audio Realtek HD AUDIO CODEC ALC269Q
LAN Intel GIGA LAN x 2 (i210AT i219LM)
Storage Bay M.2 x 1
Power Button & indicator Power Button and Power, HDD indicator LED
Front Panel I O USB 3.0 x 2
Rear Panel I O DC Jack 12 19V, 5517 x 1
HDMI2.0 x 2 (4096x2160@60Hz)
USB 3.0 x 2
RJ 45 LAN Jack x 2
Line-out x 1
Antenna Holes x 2
COM port x 2 (RS232)
Extended power switch x 1
CPU Thermal Module AOpen FanlessThermal Module
WatchDog Timer 1 ~255 sec min
Adapter 65W adapter#
Input Voltage
Warranty
MTBF 50,000hrs
Operating Temperature 0ºC ~ 45ºC (32ºF ~ 113ºF)
Storage Temperature -20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity 95% RH @ 45ºC (non-condensing)
