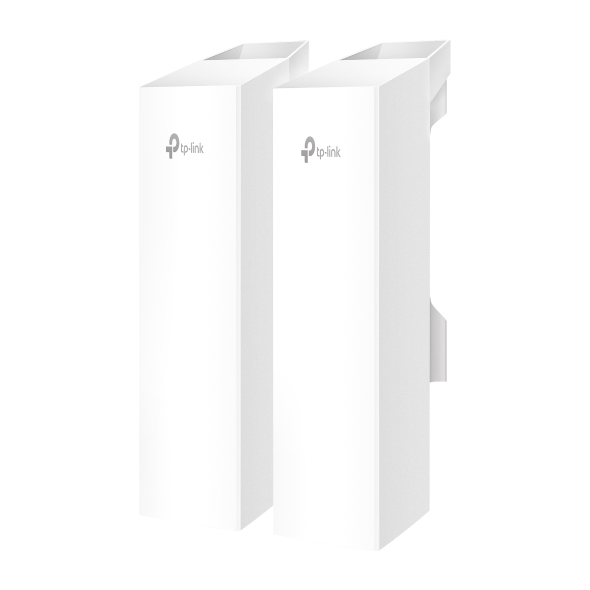

5GHz AC867 Indoor/Outdoor Access Point

5GHz AC867 Indoor Outdoor Access Point

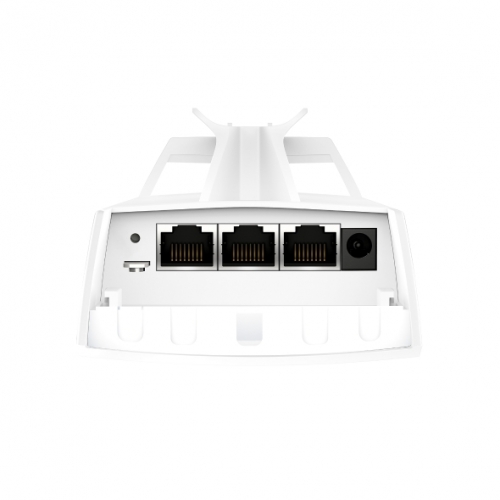

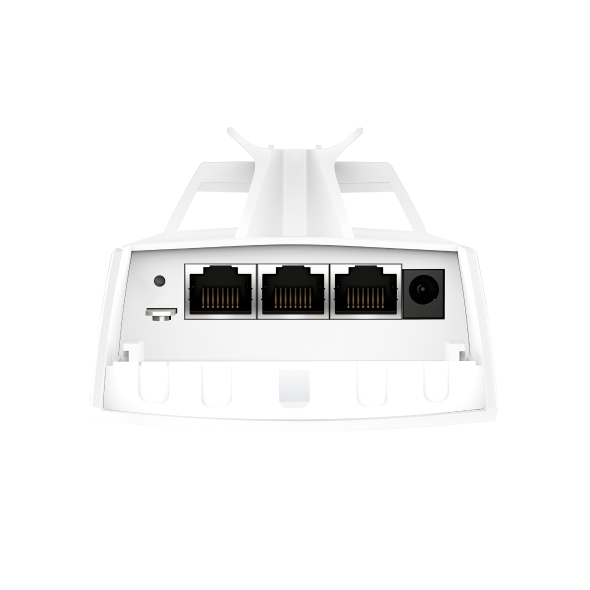

Interface 3x Gigabit Ethernet Ports
Botão Reset
Fonte de alimentação 12V DC 24V Passive PoE (Passive PoE adapter included.)
Dimensões (L x P x A) 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
Tipo de Antena Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Weatherproof Enclosure IP65

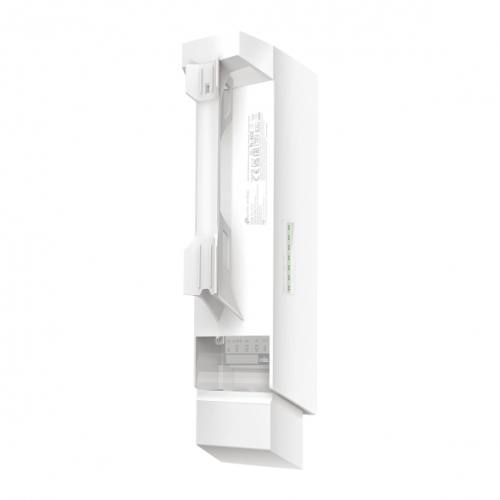

Mounting Pole Mounting (Accessories included)
Coverage 1000m(3280ft)5
Normas Wireless IEEE 802.11 a b g n ac
Frequências 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
Funções Wireless • Mesh*4
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP Dynamic IP
Segurança Wireless • VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal Enterprise, WPA2-Personal Enterprise
Transmission Power • CE:
23dBm (5 GHz, band 1 2, EIRP);
30dBm (5 GHz band3, EIRP);
• FCC:
22dBm (5 GHz band1 4)
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON OFF Control Yes
Gestão de controlo de acessos MAC Yes
SNMP v1, v2c, v3
SSH Yes
Gestão via Web Yes
OUTROS
Certificações CE, FCC, RoHS
Conteúdo da embalagem • EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
Temperatura e Humidade • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
EAN; 4895252502541
