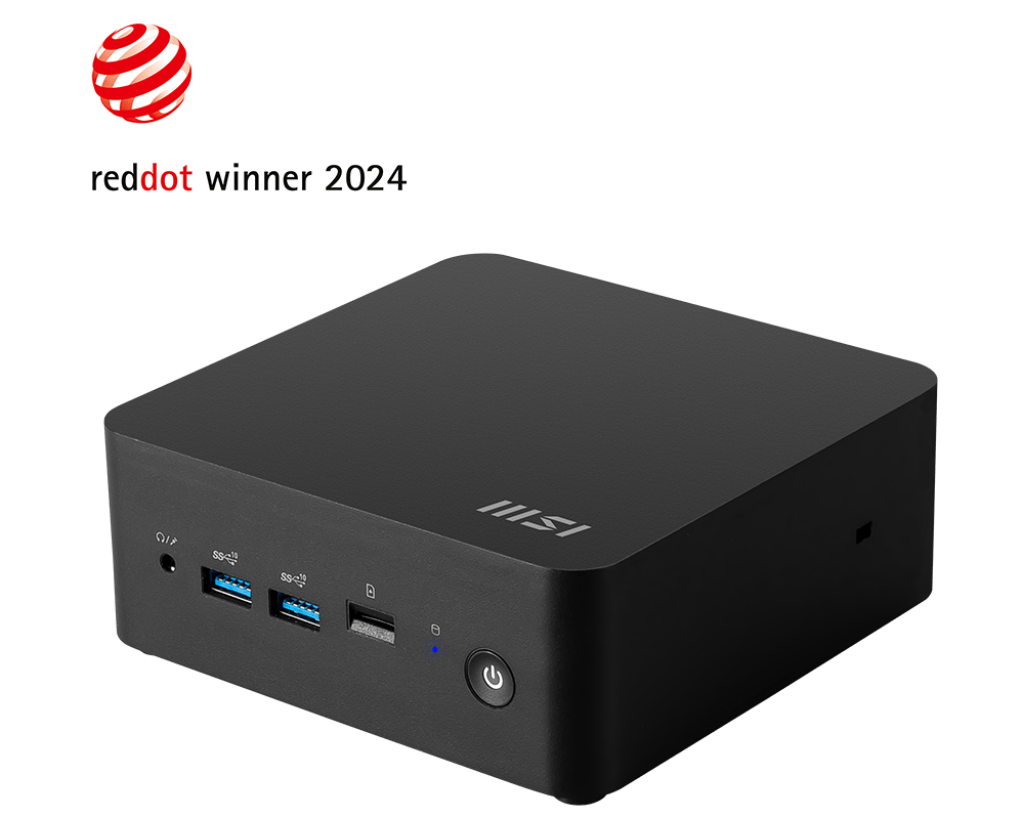

Cubi NUC 1MG-208BES - i3-100U, Intel UMA Graphics, Non-OS

Sistema operativo OS N A
Operating Systems N A
Modelo
Part No 936-B0B111-208
MKT Name Cubi NUC 1MG
MKT Spec Cubi NUC 1MG-208BES
Color ID1 Black-Black-Black
SKU Number 00B0B111-208
Chipset Chipsets Soc
Memoria
Memory Size N A
Memory Type N A
Memory Speed N A
Module Type SO-DIMM
Memory Slot(Total) 2
Memory Slot(Free) 2
Max Capacity Max 64GB
Procesador
CPU Number Intel Core 3 Processor 100U
CPU Clock 1.2GHz
CPU Cores 6
TDP 15W
Max Turbo Frequency up to 4.70 GHz
Cache 10 MB Intel® Smart Cache
Threads 8
Gráficos
GPU1 Vendor N A
GPU1 MKT Name N A
GPU1 Number N A
GPU1 VRAM Size N A
Audio Audio Chipset Realtek ALC256
Audio Type 2.1 Channel HD Audio
Almacenamiento
SSD Interface N A
SSD Form Factor N A
SSD Config N A
SSD Size N A
HDD1 Interface N A
HDD1 Form Factor N A
HDD1 Size N A
HDD1 RPM N A
ODD(Type) N A
ODD Height N A
ODD Type N A
mSATA slots(Free) 0
M.2 slots(Total) 2
M.2 slots(Free) 2
2.5" Drive Bays(Total) 1
2.5" Drive Bays (Free) 1
3.5" Drive Bays(Free) 0
Comunicaciones
LAN 2x Intel I226-V
WLAN Version Wi-Fi 6E+BT
BT Version 5.3
Puertos de E S (laterales)
Mic-in Headphone-out combo 1
Card Reader 1
USB 3.2 Gen 2 (10G) Type A 2
Puertos de E S (Traseros)
RJ45 2
HDMI out 2x (v2.1)
Lock type Kensington Lock
USB 3.2 Gen 2 (10G) Type A (R) 2
Dimensiones y peso
Weight (Net kg) 0.625
Weight (Gross kg) 1.45
Product Dimension (WxDxH) (mm) 135.6 x 132.5 x 50.10
Product Dimension (WxDxH) (inch) 5.34 x 5.22 x 1.97
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Net Weight (lbs) 1.38
Gross Weight (lbs) 3.2
VESA VESA size 100 x 100 mm
Mecánica y medio ambiente Regulatory Compliance FCC(Class B), CB CE, UL(CUL), BSMI, VCCI,
RCM(C-Tick), Epeat Sliver
Acesorios
AC Adaptor 1
Power Cord 1
Warranty Card N A
Quick Guide 2
User Manual N A
VESA Mount kit 1
Keyboard N A
Keyboard Interface N A
Mouse N A
Mouse Interface N A
Power Switch 1
EAN; 4711377270694
